Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves
Looking for reliable marine valves? Our factory produces Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc suitable for sea water vessels. Trust our quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
D7L1X-10/16
Structure
Centre Sealing
Seal Form
Auto Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Medium Temperature (120°C<T<450°C)
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Standard
API609 En593 BS5155 En1092 ISO5211
Application
Industrial Usage, Water Industrial Usage, Household Usage, Chemical Engineering
Certificates
Ce ISO Wras Acs Dnv FDA
Liner
EPDM NBR Viton FKM PTFE PFA Hypalon Neoprene
Disc
SS304 SS316 2507 2205 F51 F52 F53 1.4462 1.4507
Body
Cast Iron/Ductile Iron/Wcb/CF8m/CF8/Al-Bronze
Transport Package
Plywood or Wooden Box
Specification
DN40-DN3000
Trademark
WDS / WORLDS/OEM
Origin
Tianjin China (Mainland)
HS Code
84818040
Production Capacity
10, 000, 000PCS/Year

Packaging & Delivery

Package Size
110.00cm * 110.00cm * 90.00cm
Package Gross Weight
500.000kg

Product Description

Standard :
 Design  API 609\BS5155\EN593\GB/T12238\DIN3354
 Face to Face  API609\ DIN3202 K1\BS5155\EN558\ISO5752\ASME B16.10
 Flange End  ASME B16.1 CLASS 125\ASME B16.5 CLASS 150\ASME B16.47\BS EN 1092 PN6/PN10/PN16\JIS B 2220 5K/10K/16K\BS 10 Table D/Table E
 Top Flange  ISO5211(According to customer's needs)
 Inspection  API598\EN12266-1

Material :
BODY  CI, DI, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, C95400, C95800, SAF2205, SAF2507, F51, 1.4529^^
DISC   CF8, 304, CF3, 304L CF8M, 316, CF3M, 316L, SAF2205, SAF2507, F51, 1.4529, C95400, C95500, C95800, MONEL^..
SEAT  BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM, PTFE, RPTFE, TEFLON, NATURAL RUBBER^^
STEM  F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500^^

Detailed Description:

Size: DN40-DN3000
Top flange: ISO 5211
Normal pressure: DN40-DN600(1.5"-24") PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28"-48") PN1.0MPa(150PSI)
Suitable temperature: Normal Temperature -45 ~150
Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

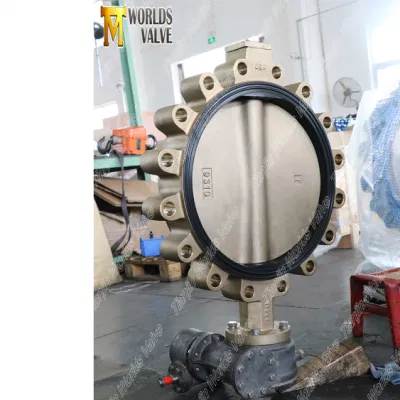

Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

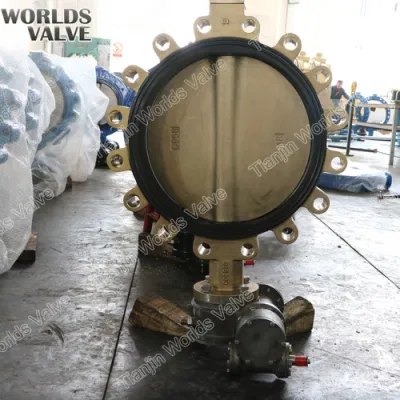

Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

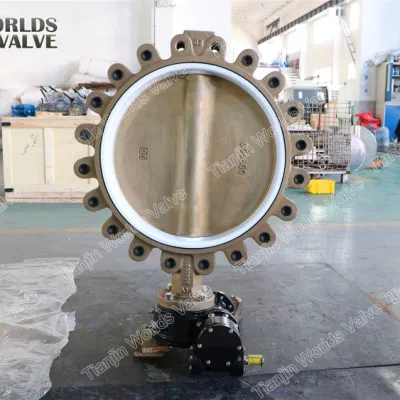

Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**COMPANY INTRODUCTION

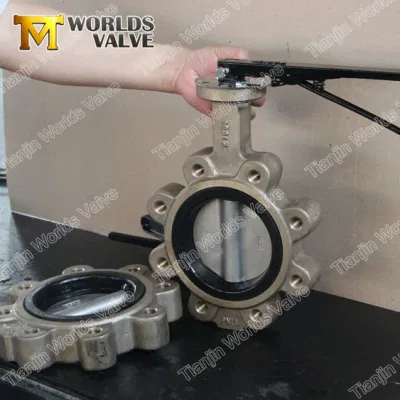

Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Company Goal : OEM service for world-famous valve brand

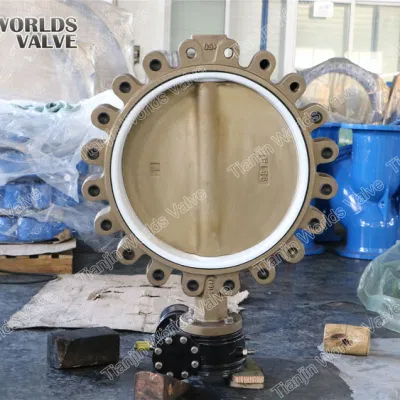

Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Dimension Measurement &Inspection
Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Assembly Workshop
Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Packaging
Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves

**Certificates --  CE  ISO  WRAS  ACS certificates
Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves Al-Bronze Lug Butterfly Valve C95400 C95800 Body and Disc for Sea Water Vessel Marine Valves
