Basic Info.
Production Capacity
10000pieces/Month
Product Description

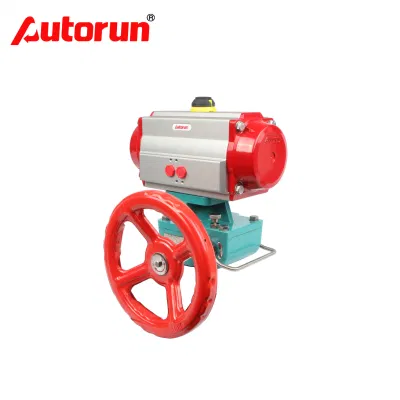

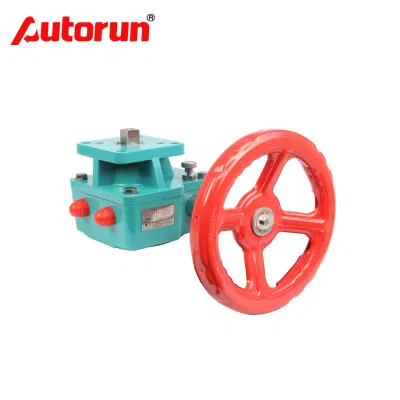

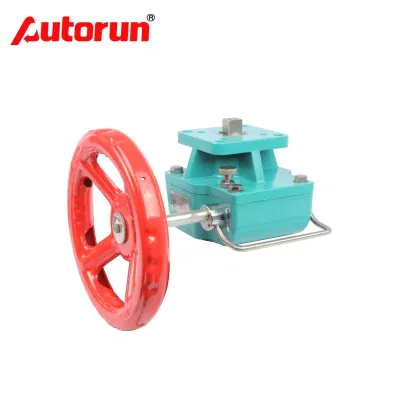

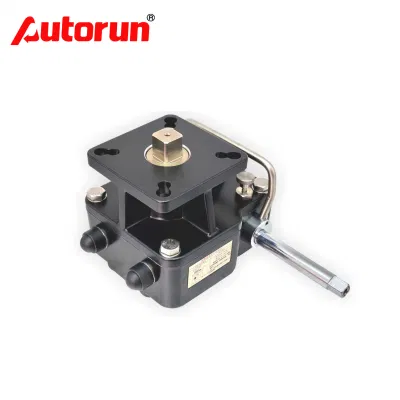

Autorun declutchable wormgear is used to control valves, dampers and others quarterturn devices simply and reliably when combining existing pneumatic actuators.
Features
Features
- Compact and light weight
- ISO 5211 mounting pattern
- Machined gear teeth provide smoothest operation and longer life
- High cycle life with low friction of all moving and sliding surfaces
- Modular design provideS the most efficient and effective solution to a full range of manual overriding requirements.
- Protection grade IP65
| No. | Name | Material |
| 1 | Shaft | 45# Steel |
| 2 | Seal Ring | EPDM |
| 3 | Snap Spring | Spring Steel |
| 4 | Upper End Cap | Aluminium Die Casting |
| 5 | Screw | 304 |
| 6 | Pull Rod | 304 |
| 7 | Body | Aluminium Die Casting |
| 8 | Seal Ring | EPDM |
| 9 | Gear | QT500 |
| 10 | Reducing Sleeve | QT400 |
| 11 | Worm | QT400 |
