Product Description

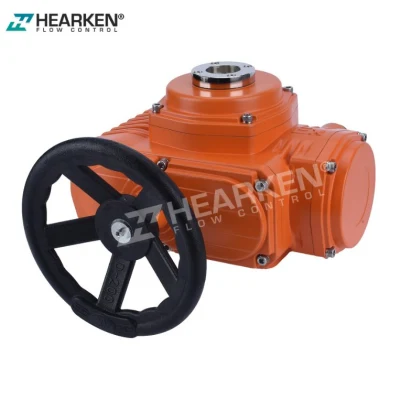

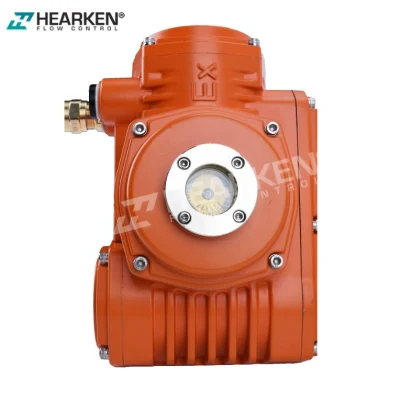

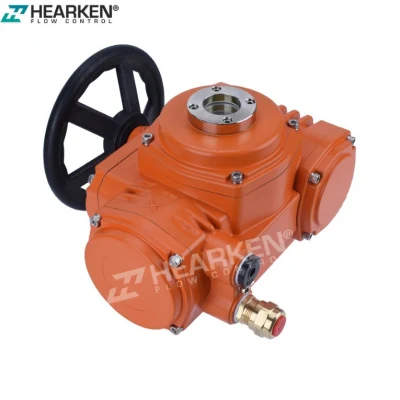

HEX series explosion proof electric actuators are used to control 0~90° rotation valve and other similar products, such as butterfly valve, ball valve, throttle, plug valves, louver valve, etc. It uses AC415V ,380v,240v.110 v ,DC12V,24 V and 220V voltage to be the driving source ,and the actuator can be reset itself (with power down reset function ) ,4-20mA current signal or 0-10VDC voltage signal to be the controling signal, driving the valve to the required position, so that realize the automation control. They can be widely apply to petroleum, chemical industry.electric power, metallurgy, pharmaceutical, papermaking, energy. water treatment, ship,textile, food processing, building automation and other fields.
1.Small volume ,light weight ,easy installation and maintenance
2.Simple and compact structure ,90 rotation ,rapid in opening and closing
3.Small torque in operating , light and handy
4.Flow characteristics tending to straight line, good regulation performance.
5.Multiple control signals, switch control.
6.Proportional (modulation) control: 0-10vdc or 4-20mA.
7.Feedback output can be selected 4-20mA, auxiliary switch and feedback potentiometer (0-1k)
8.Long time diving working,the protection class can reach IP68.
Technical Parameter and Specifications Model Parameter | HEX005 | ||||||||
DC12V | DC24V | DC36V | DC110V | DC220V | AC24V | AC110V | AC220V | AC380V | |
Motor Power (W) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Rated Current (A) | 2.6 | 1.5 | 1 | 0.4 | 0.2 | 2.4 | 0.6 | 0.25 | 0.15 |
Standard Time / Torque | 15S/30Nm | 30S/50Nm | |||||||
Optional Time / Torque | 7.5S/15Nm 10S/20Nm 15S/30Nm | 15S/30Nm 20S/40Nm 30S/50Nm | |||||||
Range of Turning Angle | Standard 0-90°, can be customized 0-360° any Angle | ||||||||
Optional Control Circuit | A Type/B Type/C Type/D Type/E Type/F Type/H Type/ZT Type/ZK Type | ||||||||
Weight (Kg) | 3.1 | ||||||||
Insulating Resistance | AC24V:100MΩ/250VDC AC110V/AC220V/AC380C: 100MΩ/500VDC | ||||||||
Withstand Voltage Class | AC240V:500VAC 1minute, AC110V/AC220V:1500VAC 1minute, AC380V:1800VAC 1minute | ||||||||
Protection Class | IP67/IP68 | ||||||||
Explosion-Proof | ExdII CT6 | ||||||||
Installation | 360°C at any angle | ||||||||
Electrical interface size | Outer wire 1-G1/2,, inner wire 1-G3/4 | ||||||||
Ambient Temperature | -20ºC~+60ºC | ||||||||
Optional Function | 1.Diving type; 2.Clutch handwheel; 3.Heat the dehumidifier; 4.Over torque protection; 5.Power reset 6.High low temperature -40ºC~+80ºC | ||||||||
