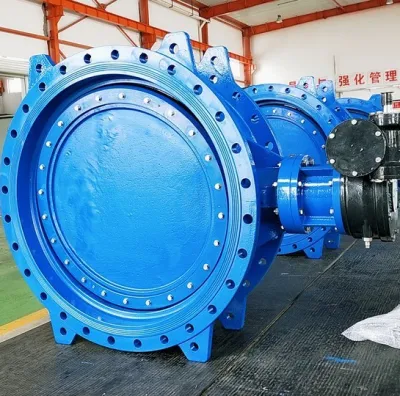

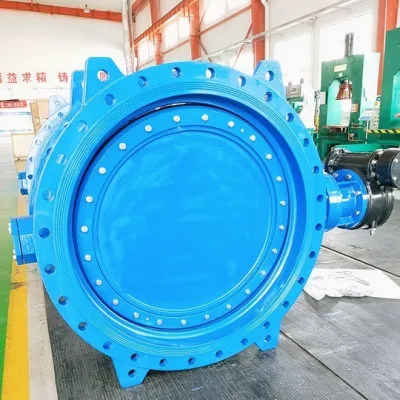

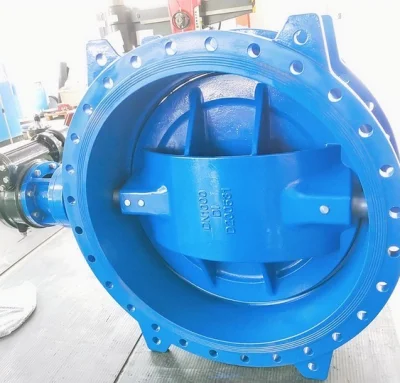

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve

Get top-quality Gear Box Operated Double Eccentric Butterfly Valves at our factory. Hot selling metallic seated flanged end valves for reliable performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
-15<T<150
Material of Seal Surface
Metal Hard Sealed
Valve Body
Casting
Standard
Pn10/16, Cl150, JIS 5K/10K
Application
Industrial Usage, Water Industrial Usage
Standard or Nonstandard
Standard
Product Name
Flange Butterfly Valve
Body
Cast Iron/Ductile Iron/Carbon Steelstainless Steel
Disc
Ductile Iron/SS304/SS316
Stem
Carbon Steel/Ss410/Ss416
Seat
EPDM/NBR/Viton/PTFE
Type
Flange
Coating
Epoxy Coated
Operator
Lever/Gear/Bare Shaft/Electric/Worm Gear
Sample
Available
Transport Package
Wooden Case
Specification
Dn50-2000; 2"-80"
Trademark
Like
Origin
China
HS Code
8481804090
Production Capacity
1000000

Product Description

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve




  Pressure and temperature

Working pressure

PN10, PN16, CL150, JIS 5K/10K

Testing pressure

Shell: 1.5 times rated pressure

Seat: 1.1 times rated pressure

Working temperature

-10 °C to 80°C (NBR)

-10 °C to 120°C (EPDM)

-10 °C to 150°C (PTFE)

Suitable media

water, oil and gas



Product detail

Parts

Material

Body

Cast iron, Ductile iron, Carbon steel, Stainless steel.

Seat

EPDM, NBR, VITON, PTFE

Disc

Nickel ductile iron, AI bronze, Stainless steel, Carbon steel, Nylon

Stem

Carbon steel, Stainless steel

Bushing

PTFE

"O" ring

PTFE

Pin

Stainless steel

Key

Stainless steel


Standard

Design Standard

EN 593, MSS SP67, API 609, BS5155

Inspection & Test

API 598, ISO 5208, EN 12266

End Standard

ANSI: B16.1 CL 125LB; B16.5 CL 150LB; B16.47 150LB.

AS: 2129 Table D & E   BS 10 Table D & E

DIN: 2501: PN6, PN10 & PN16

EN: 1092: PN6, PN10 & PN16

ISO 2531: PN6, PN10 & PN16

ISO 7005: PN6, PN10 & PN16

KS: B 1511 / JIS B 2210 5K & 10K

MSS: SP44 CL. 150LB  AWWAC207

SABS: 1123 Table 1000/3 & Table 1600/3

Face to Face

ISO 5752, EN 558, MSS SP67, API 609 and DIN3202

Top Flange

ISO 5211

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve

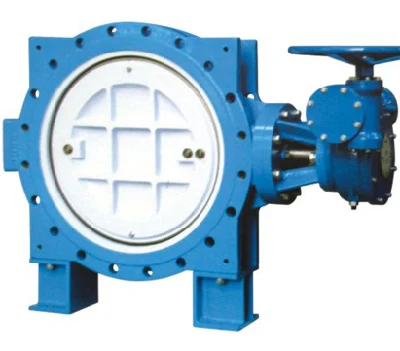

Different Types of Butterfly Valve

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve


We can produce various types of butterfly valves according to your requirement and drawings.

Production Equipment


Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve

Packing & Delivery

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve

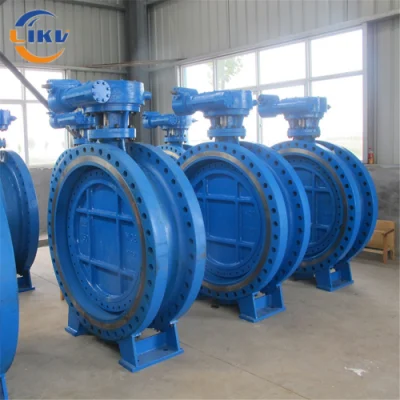

Company Profile

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve

LIKE VALVE (TIANJIN) Co., Ltd
locates in Tianjin-next to the largest sea port in North -Tianjin seaport; with more than 20 years experienced managing, manufacturing and quality control team; make efforts to produce high level quality valves of China.


Like valve has design research and development, manufacturing, marketing and aftersale services. We have the independent R&D center, advanced manufacturing technology and strictly implement the relevant international standards.
With advanced engineering design approaches, well-developed manufacturing equipment, testing verification facilities and strict QC as per ISO9001 certificate system, we "Like Valve" ensure that each part in every product we supply is in high quality and performance.
We specialize in in water valves: such as butterfly valve, gate valve, check valve, Hydraulic control valve, strainers, WRAS certified material avaiable; and oil and gas valves such as: gate valve, globe valve, ball valve, check valve, strainers etc, with API 6D certificate; also and other series products. We also customize valves in different materials, pressure, size and other products, according to customers requirement.
"Like Valve" products have exported to more than 18 countries: such as USA, Argentina, Brazil, Russia, Spain, UAE, Morroco, India, Bangladesh etc; widely used in water supply and drainage, construction, electricity, oil and gas pipe, petrochemical, metallurgical and other industries. Product ingenuity, high quality and reasonable price, trusted by the user.

Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve
Hot Selling Metallic Seated Flang End Gear Box Operated Double Eccentric Butterfly Valve


FAQ

Q1: What certificates can you offer?

A:ISO,CE,API 6D,WRAS

Q2: Do you accept OEM?
A:Yes

Q3: Can i get a sample?
A:Yes, of course.

Q4:What is your MOQ?
A:1 pcs acceptable, more discount for larger quantity.

Q5:If all products will do test?
A:Sure, our products is tested piece by piece before delivery, no sampling test.

Q6: What is the payment term.
A:T/T, L/C, Credit Card, or other by discussion

Q7: What is delivery time?
A:Common standard commonly material valves in 7-20 days according to quantity

Q8: What is the warranty?
A:Standard valves warranty: one year after delivery.
