Product Description

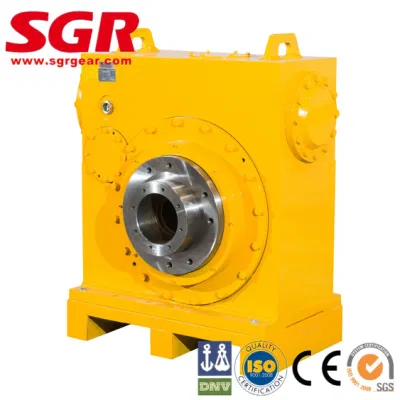

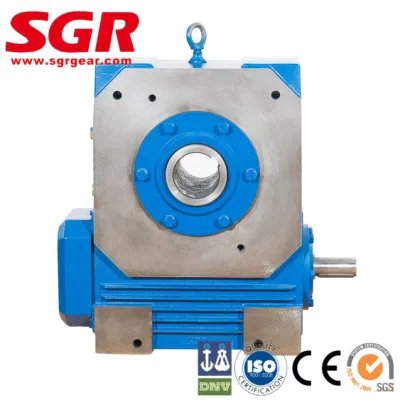

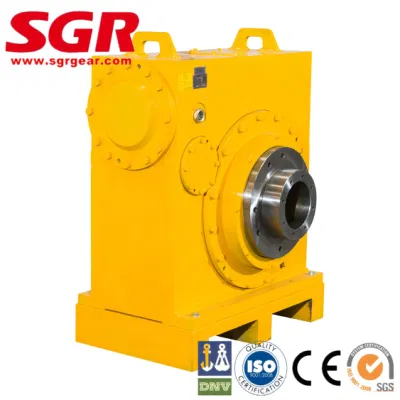

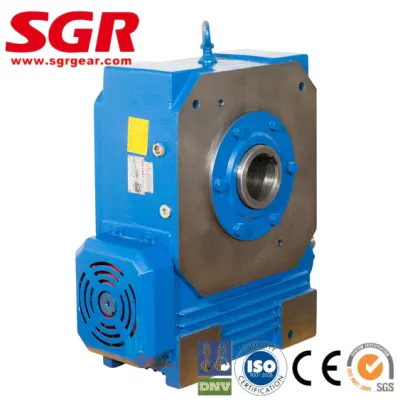

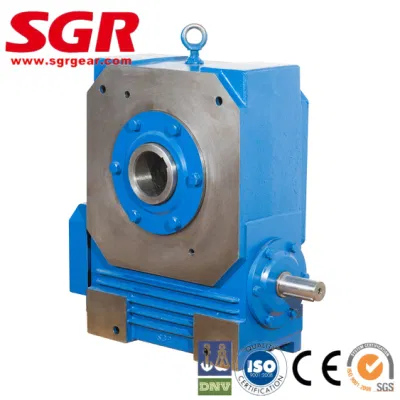

Industrial Machinery Gearbox Double Enveloping Worm Reduction Gearbox Appilcation For Mixer
Model: 100 - 500
Ratio: 10 -63
Output Torque : 683 - 51180 N.m
Rating Power : 47/25HP(1.41Kw) - 597HP(448Kw)
Description :
1, High torque double enveloping worm gear adjust toughest working condition .
2,Universal design double enveloping worm gearbox.
3, Smooth and noiseless operation double worm gearbox.
4, Higher driving efficiency than traditional worm gear.
5, Increasing loading capacity .
6, Strict quality test before shipping
7, Customized design for various application
8, Long life service period
9,suitable price with moderated
10, moderate price & high quality
As one of famous double enveloping worm gear manufacturers,SGR's double throated worm gear has advantage of High efficiency, low noise, smooth operation , it increase output torque that mean increasing loading capacity , improved gear accuracy, and extended Long life service period . in SGR double enveloping worm gear design ,based on different ratio, it has Multi-tooth meshed, allowed bigger peak load . with the increase of number of driven gear teeth , that mean in contact with the worm significantly increases output torque force. except increasing the number of driven gear teeth in contact with the worm, double enveloping worm gear also increase the contact surface on every gear tooth. The actual gear surface of instantaneous contact between the double throated and the driven gear tooth are in-lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double enveloping worm gear are configured to increase the force and decrease the stress on every gear tooth.
Datasheet on CUW double enveloping worm gear reducer :
Model: 100 - 500
Ratio: 10 -63
Output Torque : 683 - 51180 N.m
Rating Power : 47/25HP(1.41Kw) - 597HP(448Kw)
Description :
1, High torque double enveloping worm gear adjust toughest working condition .
2,Universal design double enveloping worm gearbox.
3, Smooth and noiseless operation double worm gearbox.
4, Higher driving efficiency than traditional worm gear.
5, Increasing loading capacity .
6, Strict quality test before shipping
7, Customized design for various application
8, Long life service period
9,suitable price with moderated
10, moderate price & high quality
As one of famous double enveloping worm gear manufacturers,SGR's double throated worm gear has advantage of High efficiency, low noise, smooth operation , it increase output torque that mean increasing loading capacity , improved gear accuracy, and extended Long life service period . in SGR double enveloping worm gear design ,based on different ratio, it has Multi-tooth meshed, allowed bigger peak load . with the increase of number of driven gear teeth , that mean in contact with the worm significantly increases output torque force. except increasing the number of driven gear teeth in contact with the worm, double enveloping worm gear also increase the contact surface on every gear tooth. The actual gear surface of instantaneous contact between the double throated and the driven gear tooth are in-lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double enveloping worm gear are configured to increase the force and decrease the stress on every gear tooth.
Datasheet on CUW double enveloping worm gear reducer :
| Model | ShaftDia. (mm) | Center Height (CUW) | (CUW) Output shaft Dia. | Power | Ratio | Permitted Torque | Weight |
| (CUW) input Solid(h6) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| 100 | 28 | 190 | 48 | 1.41~11.5 | 10 .25~ 62 | 683-1094 | 42 |
| 125 | 32 | 225 | 55 | 2.42~19.7 | 10 .25 ~ 62 | 1170~2221 | 65 |
| 140 | 38 | 255 | 65 | 3.94~25.9 | 10 .25 ~ 62 | 1555 ~ 3473 | 85 |
| 160 | 42 | 290 | 70 | 4.39~35.7 | 10 .25 ~ 62 | 2143 ~4212 | 120 |
| 180 | 48 | 320 | 80 | 5.83~47.5 | 10 .25 ~ 62 | 2812 ~ 5387 | 170 |
| 200 | 55 | 350 | 90 | 7.52 ~61.2 | 10 .25 ~ 62 | 3624 ~6859 | 220 |
| 225 | 60 | 390 | 100 | 9.9~81.4 | 10 .25 ~ 62 | 4872 ~ 9224 | 290 |
| 250 | 65 | 430 | 110 | 12.9 ~105 | 10 .25~ 62 | 6284~11892 | 380 |
| 280 | 70 | 480 | 120 | 16.9 ~ 138 | 10 .25 ~ 62 | 8347 ~ 15820 | 520 |
| 315 | 75 | 530 | 140 | 22.5 ~183 | 10 .25 ~ 62 | 11068~ 19450 | 700 |
| 355 | 80 | 595 | 150 | 30~245 | 10 .25 ~ 62 | 14818 ~28014 | 1030 |
| 400 | 90 | 660 | 170 | 32.1 ~261 | 10 .25 ~ 62 | 15786~29918 | 1400 |
| 450 | 100 | 740 | 190 | 42.6 ~347 | 10 .25 ~ 62 | 20998~39881 | 1980 |
| 500 | 110 | 815 | 210 | 54.9 ~ 448 | 10 .25 ~ 62 | 27097~51180 | 2700 |
