Basic Info.
Model NO.
JTW-1T to JTW-50T
Chain Falls
1
Certification
CE, ISO9001:2000
Condition
New
Color
Blue
Transport Package
Standard Exporting Plywood Cases
Specification
1t, 2.5t, 5t, 10t, 15t, 20t, 25t, 35t and 50t
Trademark
JACTON
Origin
Made in China
HS Code
8425491000
Production Capacity
7000PCS Per Month
Product Description

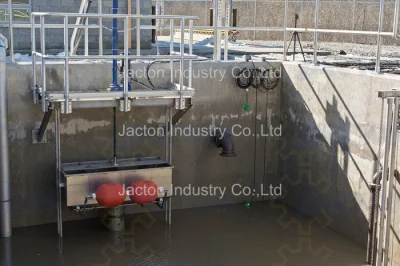

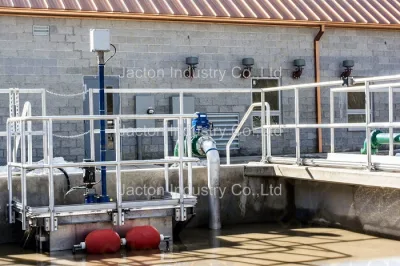

JACTON offers Manual worm gear screw jack for lifting of canal gate, Electrical Sluice Gate Screw Hoist Systems, positioning water flow gates linear actuator. Knife Gate Valves, Penstocks, Dampers, Check valves, Slurry Valves Valves for Mining Service, Paper Industry, Dams and Hydrological Projects.
Many programs for the operation of canals that deliver water to the agricultural community involve the mechanization of canal gates. Gate jacks provide a method of raising and lowering canal gates using electric motors driven instead of human power operated. motorized screw jack for sluice gate, is popular on the world water power projects. These worm gear screw jacks usually have top plate or clevis end. And they can be driven by gear motor or hand wheel. The common models are 1t, 2.5t, 5t, 10t, 15t, 20t, 25t, 35t and 50t. The screw length 0.6m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m and 6m. We can make the jack screw length following your needs.
How Screw Jacks Work?
Main components of screw jacks are trapezoidal lifting screw, worm screw, worm gear and gear housing. Worm screw is rotated manually or by motor. Worm gear is rotated by worm screw. The lifting screw moves through the rotating worm gear. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.

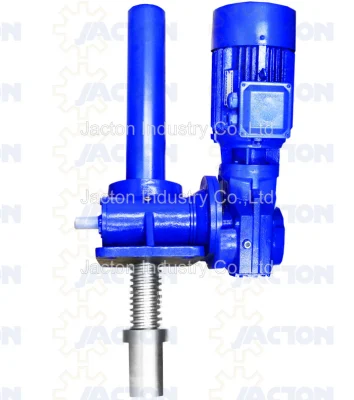

Sluice Gate Screw Jacks Features:
1. Inverted type, screw translating type, clevis end or top plate, with a protective tube.
2. Standard lift screw is a self locking ACME screw with C45 steel material. Optional stainless steel screw.
3. Worm gear screw jacks can be used as either single drive units or multi lifting systems as per the weight and sizes of the gate.
4. Screw jacks can be manually operated, or motorized.
A Screw Jack also known as a Worm Screw Jack, is a device used to convert rotational motion into a "push-pull" linear motion. It utilises the property of a screw thread providing a mechanical advantage which means that it can be used to amplify force. The rotary movement can be supplied manually or thanks to the help of hydraulic or pneumatic motors. Or thanks to electric motors, like the induction motor!
The entirely newly developed series of stainless worm gear screw jacks has been designed specifically for the tough requirements of e.g. modern paper machines. This new series is based on a standardized construction kit, which may be combined individually. Due to high-grade stainless steel and innovative technology there should not be any obstacle anymore to a mechanical lifting solution in the field of steel hydraulics construction, food industry as well the explosion-proof area.

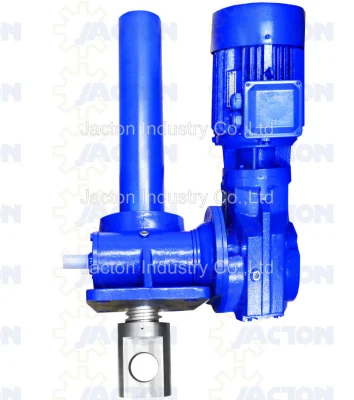

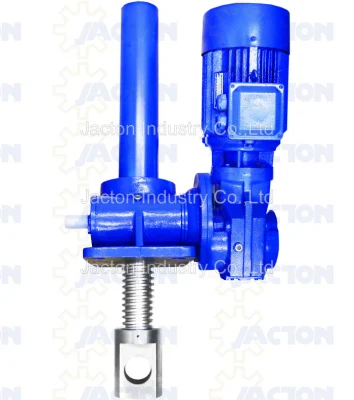

Optional screw end adapters are available for screw jacks. Choose a top plate or clevis end to meet your application requirements. Top Plate Screw End Adapters offer a perpendicular mounting surface to easily connect to your structure. Standard mounting holes assure a secure bolted connection. Clevis Screw End Adapter allows for a pinned, pivoting application.
Shipment and Packing Pictures
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing:
100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
Company Profiles
JACTON Industry Co.,Ltd (VAT No.: 9144190007026567X3, registered Capital 500000CNY) is a leading manufacturer and supplier of Screw Jacks (Mechanical Actuators), Bevel Gearboxes, Lifting Systems, Electric Linear Actuators, Gearmotors and Speed Reducers, Others Linear Motion and Power Transmission Products in China. We are located in Chang An, Dong guan, Guang dong in China. We are an audited professional manufacturer and supplier by SGS (Serial NO.: QIP-ASI192186) and BV (Serial NO.: MIC-ASR202862) organizations. We have a strict quality system, with senior engineers, experienced skilled workers and practiced sales teams, and consistently provide the customers with the best engineered solution for precision linear actuation, power transmission and mechanical jacking systems. Jacton Industry guarantees quality, reliability, performance and value for today's demanding industrial applications.
Company Advantages
* One of the biggest orders with 1750 units screw lift jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.
Products List
* Manual Screw Jacks
* Electric Screw Jacks
* Screw Jacks Series:
Cubic Screw Jack JTC Series, Machine Screw Jack JTW Series, Trapezoidal Screw Jack JT Series, Worm Screw Jack JTM Series, Stainless Steel Screw Jack JSS Series, Through Hole Screw Jack JTH Series, Ball Screw Jack JTB Series, Cubic Ball Screw Jack JTD Series, Bevel Gear Screw Jack JTS Series, and Electric Cylinder JTE Series.
* Bevel Gearboxes Series:
Cubic Bevel Gearbox JTP Series, Hollow Shaft Gearbox JTPH Series, Input Flange Gearbox JTPF Series, Input Flange and Hollow shaft Gearbox JTPG Series, Stainless Steel Gearbox BSS Series, Aluminum Gearbox JTA Series, and Bevel Gearboxes JT Series.
* Screw Jack Lifting Systems and Accessories:
2jacks lifting system, 3jacks lifting system, 4jacks lifting system, 6jacks lifting system, 8jacks lifting system......14jacks lifting system. Lifting systems accessories cover ac, dc motors, geared motors, servo motors, stepper motors, handwheels, couplings, universal joints, telescopic universal joints, connecting shafts, cardan shafts, limit switches, proximity switches, safety nut, travel nut, rod ends, stop nuts, pillow block bearings, flange blocks, motor flange nema or iec, encoder, potentiometer, frequency converter, position indicators, trunnion plate, and trunnion mounting brackets.
* Electric Linear Actuators Series:
Electro Mechanical Actuators LA Series, Electro Mechanical Actuators LAP Series.
* Gear Reducers Series:
Helical Gear Reducers R Series, Helical Bevel Gear Reducers K Series, Parallel Shaft Helical Gear Reducers F Series, Helical Worm Gear Reducers S Series, Helical Gear Motor GMH/GMV Series, and Worm Gear Reducers NMRV Series.
Customers Distribution Countries
* American Countries: United States, Mexico, Canada, Chile, Argentina, Bolivia, Brazil, Colombia, Guatemala, Honduras, Panama, Peru.
* European Countries: Germany, France, United Kingdom, Italy, Spain, Poland, Romania, Netherlands, Belgium, Greece, Czech Republic, Portugal, Sweden, Hungary, Austria, Switzerland, Bulgaria, Denmark, Finland, Slovakia, Norway, Ireland, Georgia, Slovenia.
* Asian Countries: Malaysia, Indonesia, Singapore, Philippines, Vietnam, Thailand, India, Israel, Cambodia, Myanmar, Sri Lanka, Maldives, Pakistan, Iran, Turkey, Jordan, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Georgia, Armenia.
* Oceanian Countries: Australia, New Zealand.
* African Countries: Egypt, Ethiopia, Nigeria, South Africa, Zambia, Mozambique.
