Basic Info.
Model NO.
MY-1S-180 degree
Type
Worm Gear Box
Protection Grade
IP65 (IP67,IP68 Optional)
Operation
Manual
Material
Ductile Iron, carbon Steel (Customizable)
Painting
Blue, Grey, Black (Customizable)
Transport Package
Plywood Case
Specification
depends on valve size
Origin
China
HS Code
8483409090
Product Description

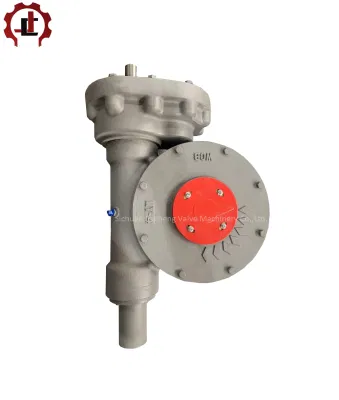

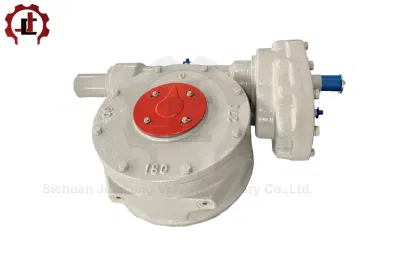

MY-1S series 0~180° worm gearbox suitable for Ball Valves, Butterfly Valves, Plug Valves,etc. Handwheel can choose according to your requirements.
This model we have with adjustable end stops travelling nut principle swing angle 0~180° or without end stop swing angle 270°.
Has good mechanical quality and steady operating performance. It has high mechanical efficiency, with new design, and it's very easy to operate. The flange connecting to valve is according to ISO5211.
| Model | MY-0 -1S | MY-1 -1S | MY-2 -1S | MY-3 -1S | MY-4 -1S | MY-4 -1SZ | MY-5 -1S | MY-5 -1SZ | MY-6 -1S | MY-6 -1SZ | MY-7 -1SZ | MY-8 -1SZ | MY-9 -1SZ | MY-10 -1SZ | |
| Ratio | 72:1 | 85:1 | 122:1 | 187:1 | 190:1 | 335:1 | 273:1 | 625:1 | 408:1 | 952:1 | 1390:1 | 1840:1 | 4035:1 | 5280:1 | |
| Flange | F12 | F14 | F16 | (F20) | F25 | F25 | F30 | F30 | F35 | F35 | F40 | F48 | F60 | F60 | |
| φD | 150 | 175 | 210 | 250 | 300 | 300 | 350 | 350 | 415 | 415 | 475 | 560 | 686 | 686 | |
| PCD | D0 | 125 | 140 | 165 | 205 | 254 | 254 | 298 | 298 | 356 | 356 | 406 | 483 | 603 | 603 |
| N-HP | 4-M12-18 | 4-M16-24 | 4-M20-30 | 8-M16-24 | 8-M16-24 | 8-M16-24 | 8-M20-27 | 8-M20-30 | 8-M30-45 | 8-M30-45 | 8-M36-54 | 12-M36-54 | 20-M36-54 | 20-M36-54 | |
| Max stem dia. | 38 10×8 | 45 14×9 | 55 16×10 | 65 20×12 | 80 22×14 | 80 22×14 | 105 28×16 | 105 28×16 | 115 32×18 | 115 32×18 | 140 36×20 | 155 40×22 | 200 45×25 | 220 50×28 | |
Q: What's your main products?
A: Our main products are worm gearbox, bevel gearbox and spur gearbox for gate valve, globe valve, ball valve, butterfly valve and etc.
Q: How long is your delivery time?
A: Delivery time was depends on the quantity of the order and our inventory, normally is 10~15 days.
Q: Term of payment?
A: T/T 30% in advance, T/T balance before shipment.
Q: Can you provide free sample?
A: Yes, we can provide the sample for free, but the shipping costs need paid by yourself.
Q: Could you specially design and produce according to client's requirements?
A: Yes, we can
If any other questions about our products, welcome to contact us.
