Basic Info.
Model NO.

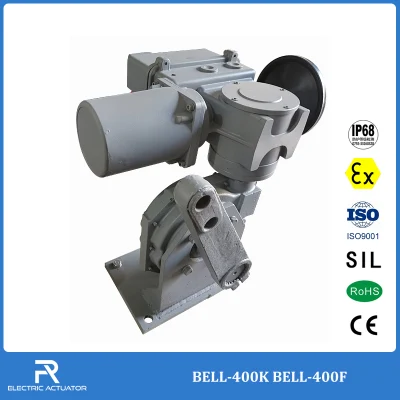

BELL-400K BELL-400F
Temperature
Ordinary Temperature, Normal Temperature
Connection
Flange
Material
Alloy, Stainless Steel
Media
Gas
Connection Form
Flange
Driving Mode
Electric
Channel
Angle Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Application
Industrial Usage
Transport Package
Wooden Case
Trademark
Freya
Origin
China
HS Code
850151
Production Capacity
1000 Piece/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
40.000kg
Product Description

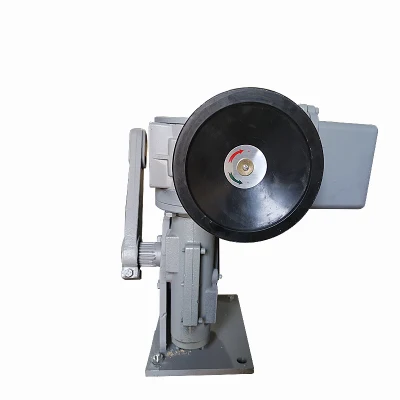

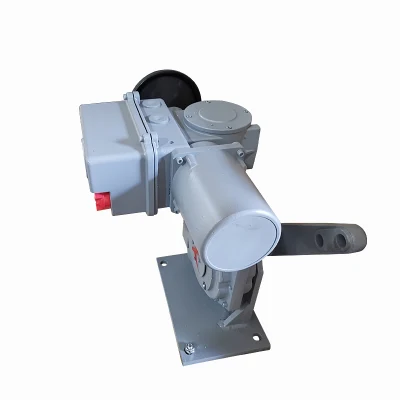

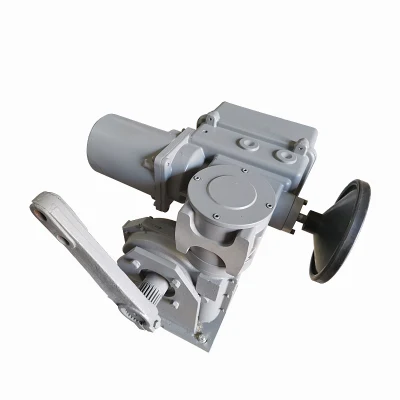

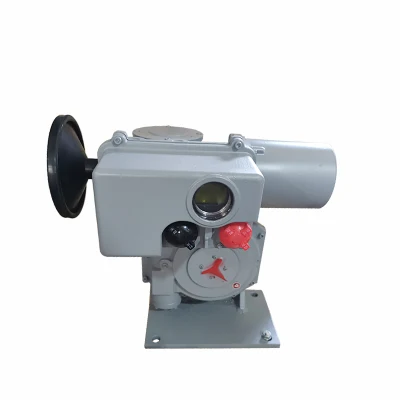

Configuration characteristics of electric actuators.Local native operation function. The product is equipped with a magnetic switch without an interconnecting shaft, which can be switched on and off by switch and turn on/off to the actuator.
Overtorque protection function. Actuator is equipped with a torque protection measurement, the role of the torque can be accurately measured valve, when more than set range, located within a actuator torque switch sends out the signal to the control circuit, the circuit has a memory function, will lock actuator running in the direction of the output signal, motor stalling, so as to protect the valve and actuator drive and motor. When the mechanical torque failure is eliminated, the actuator is switched off or the signal is reversed in an instant to return to normal work.
Special servo motor. The single-phase or bi-directional motor used by the actuator has a special motor with high starting torque, low rotary inertia, small starting current, and good servo characteristics. The motor is allowed to start frequently and is allowed to start 1200 times per hour.
Thermal protection of motor. Actuator motor fittings are equipped with thermal protection switch, the switch is connected to the control circuit, abnormal when the motor overheating, internal temperature over 130°, thermal switch automatically disconnect, at the same time, it will control power circuit of the motor, so as to protect the motor and actuator, when the motor cooling switch back on, circuit return to work.
Stroke control mechanism.The control is based on the absolute encoder mounted on the actuator. The absolute encoder is connected to the actuator drive shaft by a set of accelerating gears, which can be automatically set up without a micro switch.
Position indicator. The output current is the position indicator: all the specification actuators are equipped with the current conversion circuit output position feedback current to be used as a position indicator or as a comparison with the input signal. Output current 4-20mA DC. Output impedance of 750 ohm, constant current output.
Signal locking function. All external regulation actuators with automatic detection of 4-20 ma analog signal circuit circuit function, if there is a fault signal, the actuator can stay in situ can also run to set the location of emergency.
Dynamic braking. Dynamic braking is also my company electric actuators' standard configuration. It can prevent the motor inertia is too large for the valve overshoot caused by the dynamic brake adopts electric braking method, with accurate valve position sensor valve stroke, by control circuit to control the motor operation and accurate positioning.
Automatic phase three-phase electric actuator wiring does not need to consider phase sequence, the control circuit comes with automatic phase detection function, can protect actuator and valve because of the damage caused by the phase extension.
