Basic Info.
Model NO.
Q347H
Structure
Flexible Ball Valve
Type
Tee Ball Valve
Function
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature
High Temperature
Standard
National Standard
Application
Industrial Usage, Water Industrial Usage, Household Usage
Customize
Replaceable Processing
Transport Package
Wooden Box
Specification
DN50-DN800
Trademark
xc
Origin
China
HS Code
8481804090
Product Description
Worm gear fixed ball valve product introduction:

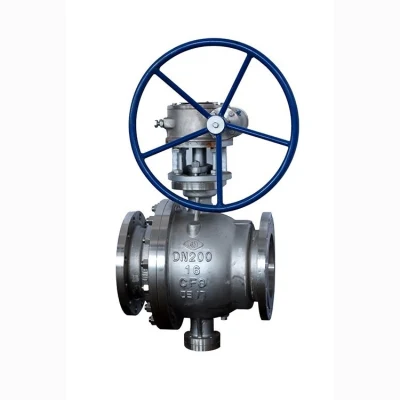

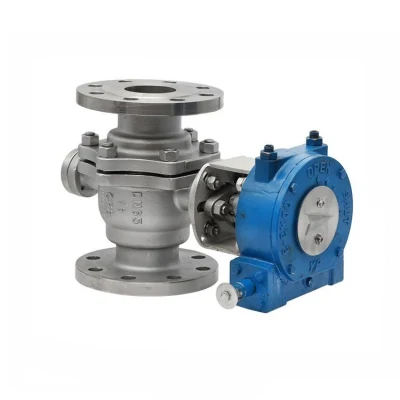

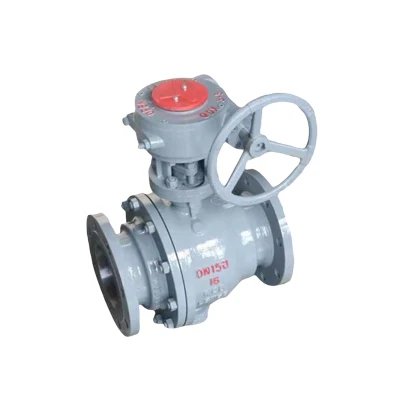

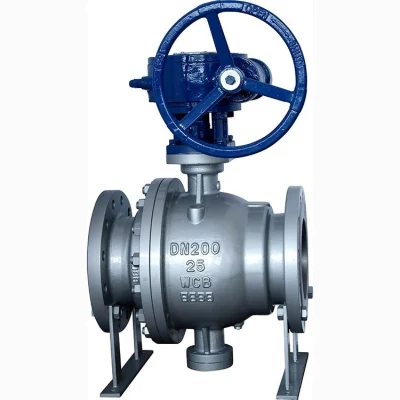

Q347F/H worm gear fixed ball valve
Summary of worm gear fixed ball valve
Ball valve in oil, natural gas, coal and ore mining, refining processing and pipeline transportation system; In chemical products, medicine and food production; In the power production systems of hydropower, thermal and nuclear power; In the water supply and drainage, heat supply and gas supply systems of urban and industrial enterprises; In the drainage and irrigation systems of farmland; It has been widely used in the gold treatment production system, and is an important mechanical product closely related to production construction, national defense construction and people's life. Ball valve closed in all kinds of pipeline systems are used to cut off or connect the medium flow, so that the medium in accordance with the predetermined procedure to each designated point.
Worm gear fixed ball valve main parts material
Worm gear fixed ball valve main dimensions
After-sales service commitment
For your company in Xuan Cheng valve order valve products, our factory in the after-sales service for the following commitments:
First, our company implements three guarantees for product quality, namely: guarantee quality, guarantee replacement, warranty;
Ii. After signing the contract, guarantee the quality and quantity and deliver the goods on time;
Three, the company to ensure that the valve products to meet the contract indicators
Iv. Provide answers to the technical consultation of the demander at any time;
5. When delivering the equipment, our factory shall deliver the following materials to the demander: shipping list, product qualification certificate, product sample, product instruction manual and technical data;
When receiving the letter or phone call of the customer's response to the quality problem, we guarantee to reply within 24 hours to solve the problem.
Q347F/H worm gear fixed ball valve
Summary of worm gear fixed ball valve
Ball valve in oil, natural gas, coal and ore mining, refining processing and pipeline transportation system; In chemical products, medicine and food production; In the power production systems of hydropower, thermal and nuclear power; In the water supply and drainage, heat supply and gas supply systems of urban and industrial enterprises; In the drainage and irrigation systems of farmland; It has been widely used in the gold treatment production system, and is an important mechanical product closely related to production construction, national defense construction and people's life. Ball valve closed in all kinds of pipeline systems are used to cut off or connect the medium flow, so that the medium in accordance with the predetermined procedure to each designated point.
Worm gear fixed ball valve main parts material
| Valve body | Stem | Valve ball | Sealing cover | Shims | Stuffing | Operating temperature | Applicable medium |
| WCB | 1Cr13 | 1Cr13 | 1Cr13 Stellite alloy Body material | Flexible graphite Stainless steel plus flexible graphite 08 Mild steel F304 F316 | Flexible Graphite Braided graphite | - 29-425 ºC | Water, steam, oil products |
| WC6 | 15CrMo | 15CrMo | - 29-425 ºC | ||||
| WC9 | 25Cr2MoV | 25Cr2MoV | |||||
| LCB | 304 | 304 | - 46-354 ºC | ||||
| CF8 | 304 | 304 | - 196-600 ºC | Partial acid and base | |||
| CF3 | 304L | 304L | |||||
| CF8M | 316 | 316 | |||||
| CF3M | 316L | 316L |
Worm gear fixed ball valve main dimensions
| Nominal diameter DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | seven hundred | |
| d1 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 337 | 387 | 438 | 489 | 591 | 686 | |
| L | 165 | 180 | 190 | 216 | 241 | 283 | 305 | 356 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1245 | |
| H | 50 | 55 | 80 | 102 | 144 | 127 | 152 | 184 | 219 | 376 | 360 | 395 | 430 | 470 | 550 | 580 | seven hundred | 800 | |
| Manual | H1 | 75 | 85 | 95 | 707 | 125 | 152 | 178 | 300 | 330 | 398 | 495 | 580 | 625 | 670 | 698 | 840 | 1050 | 1100 |
| E | - | - | - | - | - | - | - | - | - | 116 | 116 | 171 | 171 | 257 | 257 | 257 | 150 | 83 | |
| F | - | - | - | - | - | - | - | - | - | 350 | 350 | 400 | 420 | 400 | 420 | 400 | 410 | 650 | |
| W | 160 | 160 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 600 | 600 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | |
| Electric | H2 | - | - | - | - | - | - | - | - | 554 | 600 | 652 | 760 | 770 | 830 | - | 940 | 940 | 1115 |
| L1 | - | - | - | - | - | - | - | - | 235 | 235 | 235 | 259 | 400 | 400 | - | 410 | 410 | 410 | |
| Pneumatic | H3 | 215 | 240 | 264 | 274 | 379 | 389 | 479 | 552 | Awesome! | 736 | 926 | 1059 | 1127 | 1393 | 1468 | 1538 | 1538 | 1450 |
| L2 | 200 | 270 | 270 | 270 | 405 | 405 | 576 | 576 | 776 | 776 | 776 | 1060 | 1060 | 1360 | 1360 | 1360 | 1360 | 2840 | |
