Basic Info.
Model NO.
RV20-130
Type
Worm and Wormwheel
Power
0.06 to 4kw
Output Torque
2.6 to 479 N.M
Color
Blue or Other
Input Speed
1400 Rpm
Output Speed
14 Rpm to 186 Rpm
Manufacturing Method
Rolling Gear
Toothed Portion Shape
Bevel Wheel
Transport Package
Wooden Case
Specification
CE
Trademark
NANJING GEARWELL
Origin
China
HS Code
8483109000
Production Capacity
2000/Month
Product Description
RV series worm speed reducer,Single ,double and universal speed reducer
Description: 1 High quality, It adopts hard tooth gear with high accuracy
2 Large output torque,stable transmission with lower noise
3 High heat-radiating efficiency,elegant shape,durable service life 4,Suitable for omni-bearing installation
4 Low noise and smooth running
5 Worm drive uses hollow flank worm
6 High loading capacity, low in temperature rise and the long useful life
7 Few difference between transmission ratio rate, I = 6~13800
8 Compact structure, small size, convenient maintenance
9 Are based the unique modulation combination system, so its convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power, so that its possible for different types of machines to combine or connect.
The gearboxes can be applied to many industrial area, such as Metallurgical, mines, lifting, transportation, petrochemical, construction, textile, pharmaceutical, food, environmental, light electric, plastic machine, paper, parking equipment and so on. Our technical engineers can choose model for you according to your Request, and we also can supply our factory catalogue for your reference.

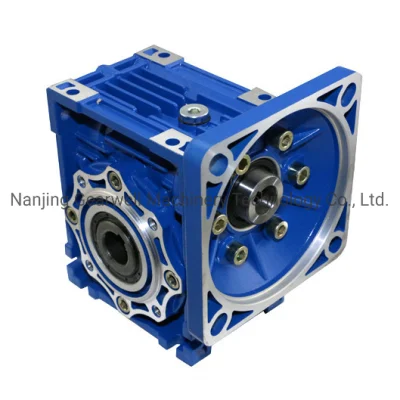

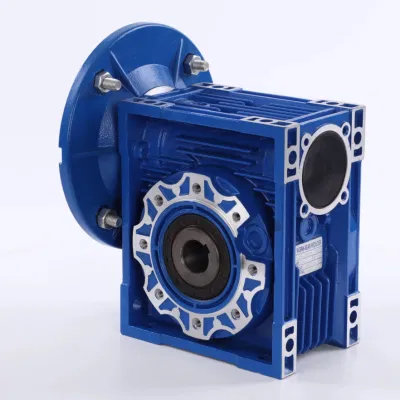

Worm Gear Speed Reducer/ gearbox
| Worm Gear Speed Reducer/ gearbox | |
| Model | NMRV25/30/40/50/63/75/90/100/130/150 |
| Ratio | 7.5,10,15,20,25,30,40,50,60,80,100. |
| Color | Blue(RAL5010)/Silver grey (RAL9006) Or On Customer Request |
| Material | Aluminum alloy Worm wheel: Aluminum Bronze or Zinc Bronze Worm shaft: 20CrMn Ti Output Shaft: steel-45# |
| Packing | Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty | 1 Year |
| Input Power | 0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,11Kw and so on |
| Usages | Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Wood working, Glass. |
| IEC Flange | IEC standard flange or on customer request |
| Lubricant | Synthetic oil or worm gear oil |
Specification:
| Model: | NMRV25-150 |
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 |
| Color: | Blue/Silver Or On Customer Request |
| Material: | Housing: Die-Cast Aluminium Alloy |
| Worm Gear-Copper-10-3# | |
| Worm-20CrMnTi with carburizing and quenching, surface harness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing: | Carton and Wooden Case |
| Bearing: | C&U Bearing and equivalent Chinese brand |
| Input Power: | 0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW |
| Usages: | Industrial Machine: Food processing, Ceramics, Conveyor, Packing, Dyeing, Woodworking, Glass. |
| IEC Flange: | 56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14 |
| Lubricant: | Synthetic & Mineral |
| NMRV series gearbox high power gear speed reducer gearbox for wind | |
| Type | NMRV63 |
| Power | 0.06-7.5KW |
| Output Speed | 0.3-419RPM |
| Output Torque | 2.6-4596NM |
| Ratio | 7.5-5000 |
| Standard voltage and frequency | 380V&50HZ |
| Production time | 25-30DAYS |
| Advantages | 1.Compact structure, light weight, large torque and excellent performance. 2. Stable in running, low in noise, large in load, low in consumption, efficient in transmission, low in temperature and long in service life. |
| Service | 1 .Rich export experience more than 14 years 2 .Devote to transmission systematize solution more than 21 years experience 3. we passed CE &ISO9001&ISO14001 certified 4. 100% Payment protection 5. 100% Product quality protection 6.Provide consultation and after-sale,experienced engineers |
Components:
1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)
Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor), IEC-normalized Motor Flange
Solid Shaft Input, Worm Shaft Tail Extension Input
5. Output Configurations: Keyed Hollow Shaft Output
Hollow Shaft with Output Flange, Plug-in Solid Shaft Output
6. Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
7. Gearbox Painting: Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey
Cast Iron Gearbox:
After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
Models:

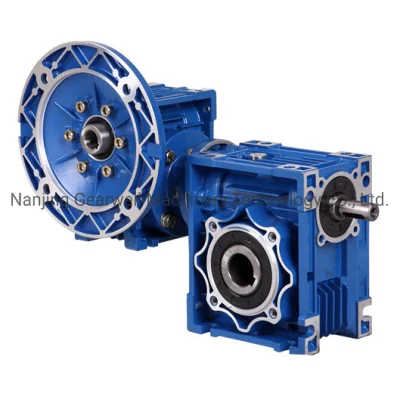

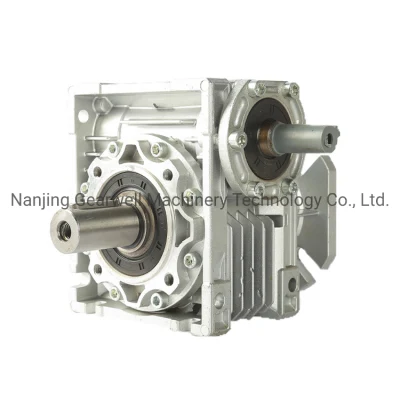

Hollow Shaft Input with IEC-normalized Motor Flange, RV025~RV150, Solid Shaft Input, RV025~RV150
Features:
1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation
| Models | Rated Power | Rated Ratio | Input Hole Dia. | Input Shaft Dia. | Output Hole Dia. | Output Shaft Dia. |
| RV025 | 0.06KW~0.12KW | 5~60 | Φ9 | Φ9 | Φ11 | Φ11 |
| RV030 | 0.06KW~0.25KW | 5~80 | Φ9(Φ11) | Φ9 | Φ14 | Φ14 |
| RV040 | 0.09KW~0.55KW | 5~100 | Φ9(Φ11,Φ14) | Φ11 | Φ18(Φ19) | Φ18 |
| RV050 | 0.12KW~1.5KW | 5~100 | Φ11(Φ14,Φ19) | Φ14 | Φ25(Φ24) | Φ25 |
| RV063 | 0.18KW~2.2KW | 7.5~100 | Φ14(Φ19,Φ24) | Φ19 | Φ25(Φ28) | Φ25 |
| RV075 | 0.25KW~4.0KW | 7.5~100 | Φ14(Φ19,Φ24,Φ28) | Φ24 | Φ28(Φ35) | Φ28 |
| RV090 | 0.37KW~4.0KW | 7.5~100 | Φ19(Φ24,Φ28) | Φ24 | Φ35(Φ38) | Φ35 |
| RV110 | 0.55KW~7.5KW | 7.5~100 | Φ19(Φ24,Φ28,Φ38) | Φ28 | Φ42 | Φ42 |
| RV130 | 0.75KW~7.5KW | 7.5~100 | Φ24(Φ28,Φ38) | Φ30 | Φ45 | Φ45 |
| RV150 | 2.2KW~15KW | 7.5~100 | Φ28(Φ38,Φ42) | Φ35 | Φ50 | Φ50 |
Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
