Basic Info.
Model NO.
SWH-SB04
Security Level
B1
Door Type
Single Door
Appearance of Height
<273mm
Appearance of Width
371-460mm
Appearance of Depth
301-400mm
Material
Cold Rolled Steel
Application
Home, Commercial, Hotel
Lock
Electronic Motorized Locking System with LED
Code
2 Sets Digital Codes, with Override
Steel Plate Thickness
Body: 2mm Door: 5mm
Bolts
Double Solid Steel Locking Bolts
Color
Ivory, Grey, Black or as Request
Surface Treatment
Powder Coating Against Rusting or Corroding
Carpet
Whole Interior
Transport Package
Packed in Cartons
Specification
high 200mm X wide 420mm X Deep 370mm
Trademark
Swallow
Origin
Jiangsu, China
HS Code
8303000000
Production Capacity
150000 Piece/Pieces Per Year
Packaging & Delivery
Package Size
40.00cm * 45.00cm * 25.00cm
Package Gross Weight
12.000kg

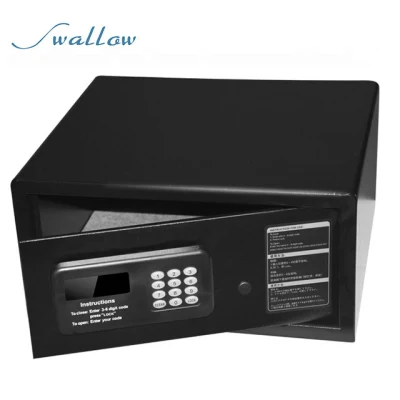

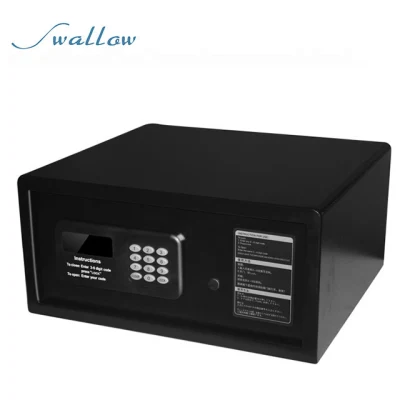

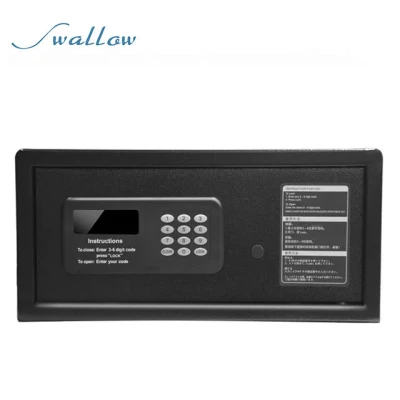

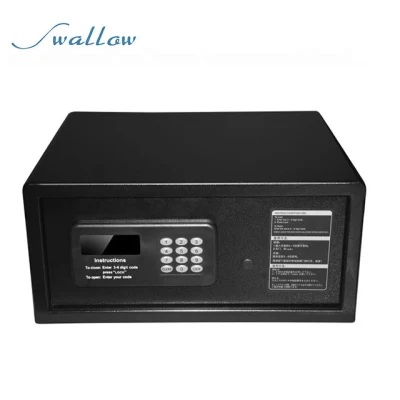

Product Description
* Side door Series Specification: high 200mm X wide 420mm X Deep 370mm 11kg
* Electronic Intelligent Lock Series Specification: high 220Xwide 420X Deep 400mm
* Product Features: the company adopts A3 high quality cold rolled plate, 19mm diametersolid steel lock tongue 4AA alkaline battery black or custom color (no additional charge) to provide mechanical emergency keys.
* Service life design: the design function of LED display screen has a continuous service life of at least 20 years, the low
power consumption ratio is 3.5V to 7.5V, the motor is designed to rotate at least 60000 times, and the service life of the
motor canreach 26 years according to the opening life of the motor 6 times a day. The circuit board is designed for high
technology and adopts advanced resistance microprocessor function, which will effectively reduce the occurrence of faults, and its continuous service life will exceed 10 years.
* Battery performance: using 4×1.5V alkaline, its power consumption is only 35UA in static state,and 320MA. the life of the battery can be obtained. Over 1.5 years.
* Structure description:
a: box technology:
1 box is a primary molding process,
2 door plates and door frames are strengthened with 5MM high quality steel plate,
3: reinforced doors and boxes are connected to each other,
* function description:
1 hotel room number can be set (interstellar hotel selection),
2: can set one click to close
3: can set the use clock (star hotel must be equipped)
4: 3 times 6 guest password selection (star hotel must be equipped)
5: password hiding function design
6: emergency open reset function, decoder use reset function, (star hotel must be equipped)
7 battery is low Power prompt function (hotel must be equipped)
8 with rental function
9: the use of imported storage chips can store more than 100 verification records (hotel must be equipped)
* standard configuration:
1: optional internal lighting.
2: International standard ADI keystrokes with lights and blind spots are designed to solve the problem of old people and people with poor eyesight. (hotel must)
3: fast Voltage Test
4: enhanced LED display Screen
5: can select two sets of combination password (hotel must)
6: visual operating system and operation prompt
7: with rental function
8: optional internal lighting.
9: 3 password error automatic lock 15 minutes, at the same time can select password (hotel must be equipped) low voltage alarm prompt can operate more than 100 times, standby 168 hours;
* Management control
1: forced unlock (mechanical key) management control in forgotten password state
2: (password and program are designed by hotel) manage password.
Packaging Details:
Packed in cartons
Port:
shanghai
