Basic Info.
Model NO.
Threaded end Ball Valve
Type
V Type Ball Valve
Material
Stainless Steel
Pressure
Ordinary Temperature
Valve Structure
Floating Ball Valve
Power Supply
AC & DC
Usage
Safety
Standard
CE
Application
Industrial Usage, Water Industrial Usage, Household Usage
Structure
Floating Ball Valve
Function
Screwed Ball Valve
The Material
Stainless Steel
Nominal Pressure
Pn1.0-32.0MPa
Condition
New
Brand
SMT
Certification
CE ISO
Transport Package
PP
Specification
PC
Trademark
Smart
Origin
China
HS Code
8481804090
Production Capacity
500000PCS/Year
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Product Description
Product Explanation:

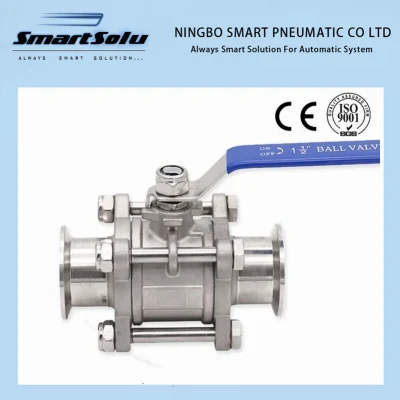

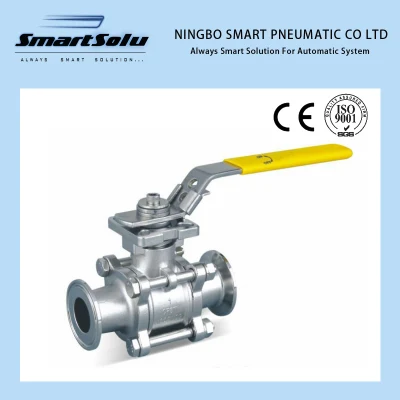

Three Piece ISO5211 Direct Mounting Pad Thread Ball Valve
Applicable Standards
Working Pressure: 1000WOG
Temperature Range: -20~-250° Suitable medium: Water, Oil, air and some Corrosive liqid
Thread type: G. NPT. BSPT. BSP. DIN259/2999
No. | Parts Description | Material | ||
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Bonnet | CF8M | CF8 | WCB |
| 3 | Ball | SS316 | SS304 | |
| 4 | Seat | PTFE RPTFE PPL | ||
| 5 | Stem | SS316 | SS304 | 2Gr13 |
| 6 | Anti-Static | SS304 | ||
| 7 | Thrust Washer | PTFE | ||
| 8 | Packing | PTFE | ||
| 9 | Transition Washer | RPTFE Expanded Graphite | ||
| 10 | Packing Ring | SS304 | ||
| 11 | Belleville Washer | SS304 | ||
| 12 | Nut | SS304 | ||
| 13 | Loose Resistant Cover | SS304 | ||
| 14 | Handle Nut | SS304 | ||
| 15 | Stop Plate | SS304 | ||
| 16 | Handle | SS304 | ||
| 17 | Handle Cover | Plastic | ||
| 18 | Stop Bolt | SS304 | ||
| 19 | Seal Gasket | PTFE | ||
About our company:
NINGBO HI-TECH SMART MACHINERY CO LTD was established in 2013, is a high tech company specialized in pneumatic components and microduct accessories manufacturing. After years' hard working, it has owned 2 factories now, and the products include pneumatic vibrators, air cylinders, solenoid valves, air treatment units, pneumatic fittings&mufflers, microduct connectors and other accessories. We have sold our goods to more than 60 countries, and that number is still increasing.
Our Services & Strength 1. We have more than 10 years experience on pneumatic products;
2. Excellent quality control has always been the goal of our practice;
3. You can purchase most of the pneumatic products here;
4. Sample orders and orders with a small number of products are acceptable;
5. OEM, ODM is ok for us. Not only the label and packaging, but also the personalized customization of the product itself;
6. Any requirements, just feel free to let us know.
