Basic Info.
Model NO.
F0811
Actuator
Electric
Seal Surface
Vulcanized Seat Design
Thread Position of Valve Rod
Inside Butterfly Valve
Usage
Regulation, Safety, Flow Control
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage
Color
Red
Certificate
UL/FM
Size
DN50-DN300
Connection
Flange/Screw
Transport Package
Plywood Case Packing
Trademark
SELE FIRE
Origin
China
Production Capacity
50000PCS/Month

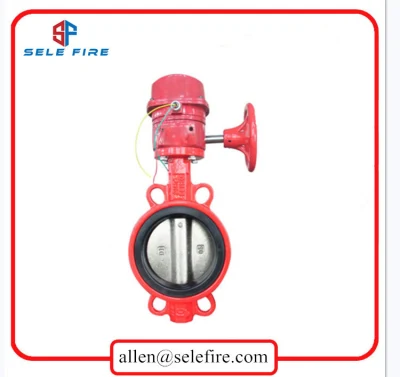

Product Description
1.Specifications
1. Single piece through shaft
2.Vulcanized seat design for bubble-tight shutoff at 300psi.
3.Flag type position indicator.
4.Low torque operation,high cycle life. With built-in supervisory switch.
5.Top flange to ISO5211/1
6.Flanges to ANSI B16.1 Class125,EN1092-2 PN10/16(Other flange types available upon request).
7.UL/ULC Listed and FM Approved.
8.300PSI,250PSI and 200PSI is available upon request
9.GOST Certification.
10.Working temperature:-10 Deg.C-82 Deg.C
11.Fusion Bonded Epoxy Coated Interior And Exterior to AWWA C550 Standard
12.FM Approved for Size:DN50-DN200

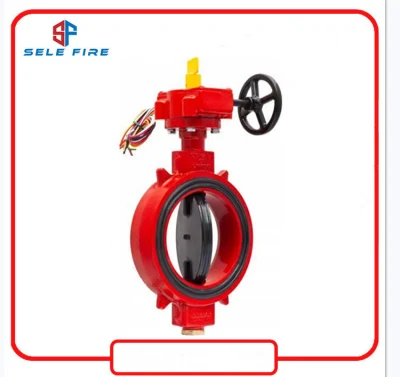

2.Installation for Gear Operator With Tamper Switch
Butterfly valves are provided with internal supervisory position switches.The tamper switch operates by a cam connected
to the valve stem.The switch will change position and close within two(2) full turn of the hand wheel from the fully open position.
Switch#1:
For connection to the supervisory circult
Normally closed:2 Yellow
Normally open:2 Red
Common: 2 White
Switch#2:
Auxiliary switch connected per authority
Normally close:1 Blue
Normally open:1 Orange
Common:1 Black
Ground Lead:1 Green
3.Material Specifications
4.Dimensions
5.Application

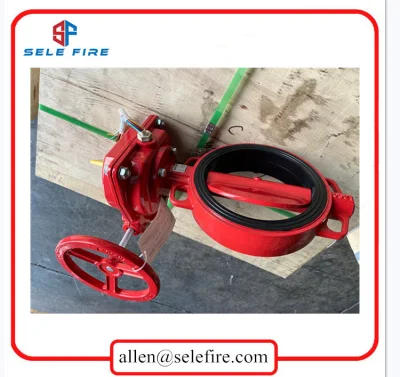

6.Packing
7.Shipping
8.Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Company:Jiujiang SELE(DEFU) Fire Fighting Equipment Co.,Ltd
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Factory:Shanghai Y&L Pump Co.,Ltd
