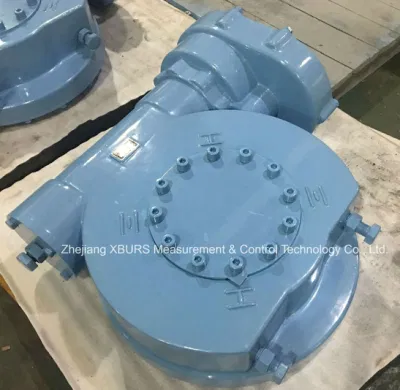

Model:XW10 electric operated Worm Gear Operator
| Model | Electric Output Torque N·m | Ratio | Electric Input Torque N·m | Input Flange ISO5210-2001 | Standard Base Output Flange | Thickened Base Output Flange | Maximum Stem Diameter mm | Input Shaft Diametermm | APPROX. Weight kg |
| XW3 | 800 | 58 | 46 | F10/F14 | F12 | F10/F12/F14 | 43 | 15 | 15 |
| XW4 | 1700 | 68 | 83 | F10/F14 | F14 | F12/F14/F16 | 52 | 20 | 23 |
| XW5 | 3000 | 67 | 149 | F10/F14/F16 | F16 | F14/F16/F25 | 76 | 20 | 50 |
| XW6 | 7000 | 69 | 338 | F14/F16 | F25 | F16/F25/F30 | 87 | 30 | 83 |
| XW7 | 16000 | 60 | 889 | F14/F16/F25 | F25/F30 | F35 | 120 | 30 | 144 |
| XW8 | 28000 | 60 | 1556 | F14/F16/F25 | F25/F30/F35 | F40 | 153 | 35 | 254 |
| XW9 | 40000 | 60 | 2222 | F14/F16/F25 | F30/F35 | F40/F48 | 170 | 40 | 327 |
| XW10 | 65000 | 60 | 3611 | F16/F25/F30 | F35/F40 | F48 | 190 | 50 | 493 |
Introduction
XBURS XW series Part-turn Worm Gearbox is precison device(rotary) with high quality and safety,intended to reduce the speed and increase thetorque. It is easy to process axis hole and key groove because of the removable sleeve.
Characters
1.Totally enclosed gearing
2.Grease filled for longer life
3.Comprehensive gear ratios for different
applications
4.Removable output sleeve
5.Optional travelling sleeve
6.Adjustable stopper (± 5°)
7.Optional flange to suit for different type of valve
Application
XW series part-turn worm gearboxes are used for manual and electric (electric actuator) applications of ball valves,butterfly valves, plug valves and dampers.
Operating Environment
XW series part-turn worm gearboxes are with good mechnical quality and steady operating performance which apply to deal with variety climate and temperature. We strive to develop RW series worm gear operator to meet higher demands.
Enclosure: IP67
Working Temperature: Form-40ºCto120ºC(-40ºFto248ºF)
Painting: Silver grey (customization)
Connect With Valve
The flange connecting to valve is according to ENISO5210 or DIN3210 (Customization)
